| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | SURPLUS LIGHTING |
| Chứng nhận: | TUV CB CE RoHS SAA UKCA |
| Số mô hình: | SL-ST30B2 |
| Số lượng đặt hàng tối thiểu: | 1 ĐƠN VỊ |
|---|---|
| Giá bán: | 1-100US$/unit |
| chi tiết đóng gói: | Bao bì tiêu chuẩn hoặc tùy chỉnh |
| Thời gian giao hàng: | 10-18 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Khả năng cung cấp: | 9.000 đơn vị mỗi tháng |
| Trọn đời: | 120.000 giờ (Báo cáo TM21) | LED thương hiệu: | Quangyou 5050 / Lumileds LUXEON 5050 |
|---|---|---|---|
| Bảo hành: | 5 năm theo tiêu chuẩn | Lumens: | 220lm/W (báo cáo LM79) |
| xếp hạng ip: | IP66 | xếp hạng IK: | IK08 |
| Cct: | 1700-6500K / PC Amber | ắc quy: | LiFePO4 12.8V |
| Công suất định mức: | 30W | Kiểu: | Đèn đường năng lượng mặt trời tích hợp tất cả trong một |
| Làm nổi bật: | 30W solar LED street light,IP66 waterproof solar light,TUV certified solar lighting |
||

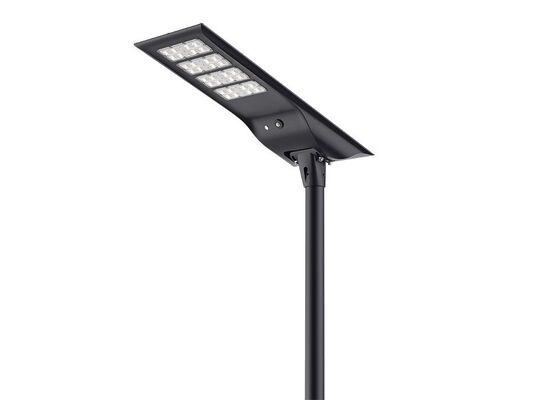

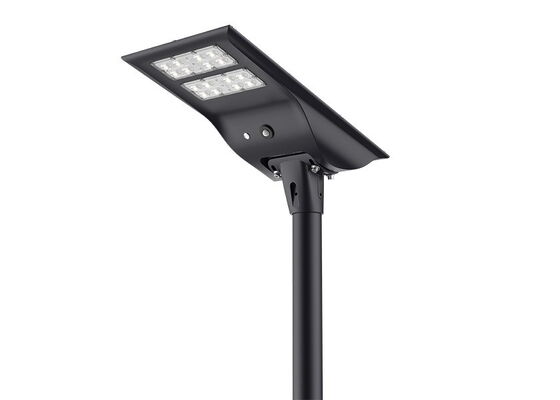

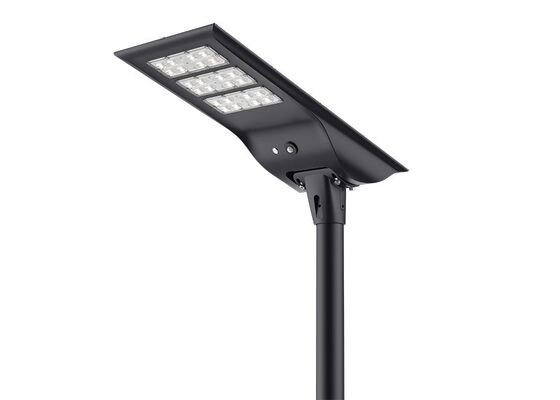

All in One Solar Light 30W IP66 Integrated Solar LED Street Light TUV CB CE SAA Certified Solar Lighting
SHINING-STAR GEN2 Series 220lm/W 30W IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty All in One Solar Light
| Part No. | SL-ST30B2 | SL-ST40B2 | SL-ST50B2 | SL-ST60B2 | SL-ST80B2 |
| Solar Panel Parameters | Monocrystalline 18V 40W | Monocrystalline 18V 50W |
Monocrystalline 18V 66W
|
Monocrystalline 18V 80W
|
Monocrystalline 18V 100W
|
| Battery Parameters | LiFePO4 12.8V 18AH | LiFePO4 12.8V 24AH | LiFePO4 12.8V 30AH | LiFePO4 12.8V 36AH | LiFePO4 12.8V 42AH |
| System Voltage | 12V | ||||
| LED Brand | Lumileds 5050 / TYF5050 | ||||
| Light Distribution | TYPE II Medium 70°x165° | ||||
| CCT | 1700K~6500K/ PC AMBER / 1700K<1% blue | ||||
| Charge Time | 6 hours | ||||
| Working Time | 3-4 Days (Auto Control) | ||||
| Protection Grade | IP66(TUV IP66 report), IK08 | ||||
| Luminous Efficiency | 220 lm/W | ||||
| Operating Temperature | -20℃ to 60℃ | ||||
| Warranty | 5 Years | ||||
| Main Materials | ADC12 Die-cast housing, optical PC lens | ||||
| Luminous Flux | 6600 lm | 8800 lm | 11000 lm | 13200 lm | 17600 lm |
| Rated Power | 30W | 40W | 50W | 60W | 80W |
|
Tested |
IEC 62321-1:2013, IEC 62321-2:2021, IEC 62321-3-1:2013, IEC 62321-5:2013, IEC 62321-4:2013+AMD1:2017 CSV, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017 |
||||
Maintenance of SHINING-STAR GEN2 series 220LM/W IP66 Integrated Solar LED Street Light 5 Years Warranty
Trouble shooting for SHINING-STAR GEN2 series IP66 IK08 Integrated Solar LED Street Light 5 Years Warranty
| Phenomenon | Cause | Inspection methods | Solution |
|
Lights not work |
Switch does not turn on | Check whether the switch turns on | Turn on the switch |
| Switch failure | Make the switch short circuit, if it is still lighting up, could judge the switch failure. | Replace Switch | |
| Battery runs out | Long rainy day or wrong installation site could not charge enough power. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, then could judge battery runs out or low power cause system could not work. | Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. | |
| LED Failure | Firstly, adjust the DC power supply to voltage 9V and current less than 1A, then connect the positive and negative electrode of DC power supply to LED, if LED could not light, could judge LED failure. | If confirming LED failure, please contact us to return and replace. | |
|
Short lighting time |
Low battery |
Wrong installation or dust and leaves cover on solar panel cause not enough solor power to battery. 1. Check whether there is dust or leaves covering on the solar panel. 2. Open the system, disconnect the battery and use multimeter to check the voltage of the battery, if voltage less than 11V, that could judge battery runs out or low power cause system could not work. |
1. Charge battery by solar panel in daytime, and turn off the switch at night to stop discharge, like this, 2 days could full charge the battery. 2. Clean the solar panel. |
| Battery Failure |
Open the light and check if battery is dispalced or outer has been damaged . Battery maturing, lights used more than 2 years. |
1. If damage caused by transportation, please return to our factory for repairing or replacement. 2. Contact us to buy the same type battery if battery maturing. |
|
| No induct | Sensor Failure | Move in the range of detection under the half power lighting condition, if light not turns to full power ,could judge the sensor failure. | If confirming failure caused by controller or sensor, please return to our factory for repairing or replacement. |
| Flashing light | Controller (timer) setting wrong | Intelligent mode opens due to an exceeding output power of the controller and light flashing. | Return to our factory to reset or replace the products. |
