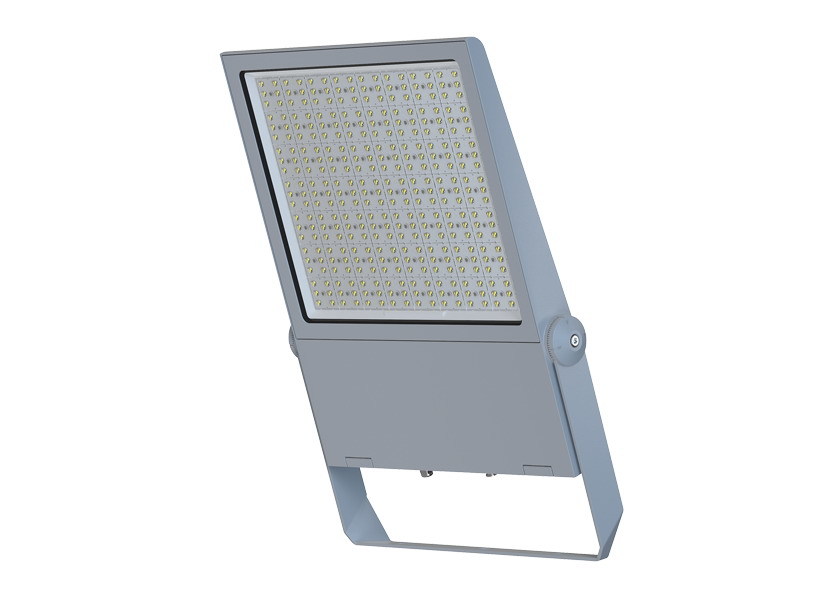

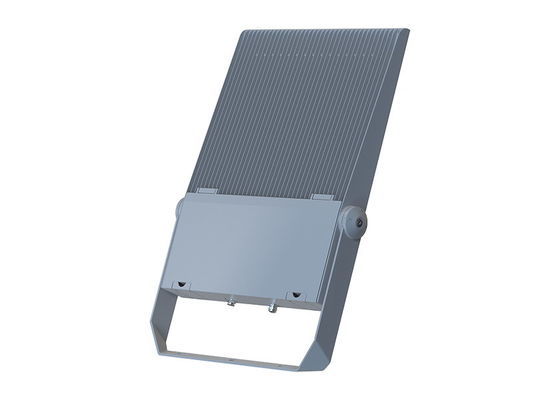

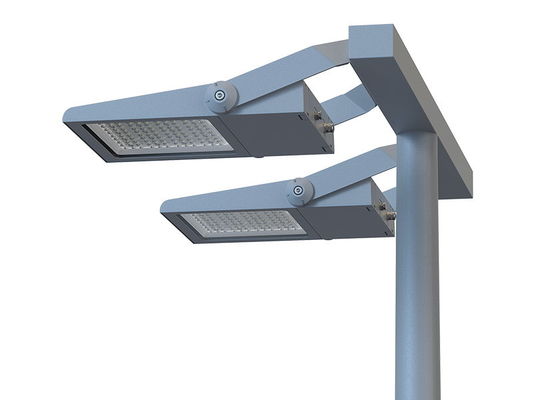

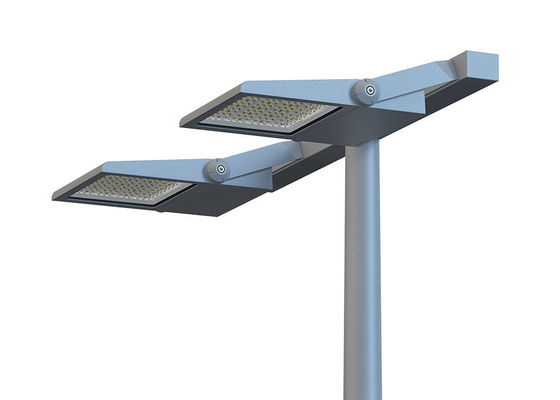

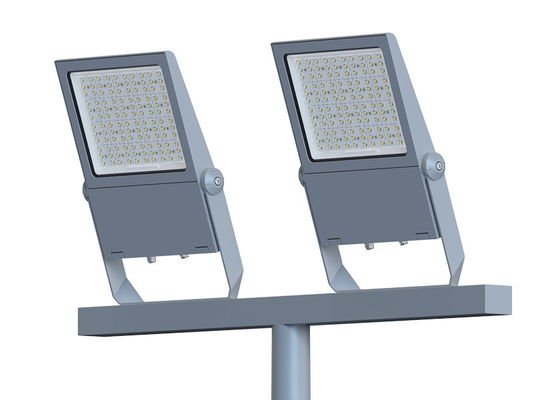

Sportlux Gen4 Series 600W IP66 IK09 LED Flood Light Stadium Light TUV ENEC CE CB SAA GMA INMETRO RETILAP Certified Outdoor Lighting 5 Years Warranty datasheet
| Product Code |
SL-FL 100WxxS4NL |
SL-FL 150WxxS4NL |
SL-FL 200WxxS4NL |
SL-FL 250WxxS4NL |
SL-FL 300WxxS4NLS |
SL-FL 300WxxS4NLB |
SL-FL 400WxxS4NL |
SL-FL 500WxxS4NL |
SL-FL 600WxxS4NL |
SL-FL 680WxxS4NL |
| Power | 100W | 150W | 200W | 250W | 300W | 300W | 400W | 500W | 600W | 680W |
| Luminous Efficacy | 170lm/W (@4000K / 5000K) | |||||||||
| Insulation class | Class I | |||||||||
| Input Voltage | AC100-277V | |||||||||
| LED Type | LUMILEDS 2835 / TYF2835 | |||||||||
| Driver Brand | SOSEN | |||||||||
| Surge Protection | Support built-in 10KV / 20KV / 40KV SPD | |||||||||
| Ral code | RAL9006 | |||||||||
| CRI | >70Ra | |||||||||
| CCT | 1700K-6500K | |||||||||
| PF | ≥0.95 | |||||||||
| Beam Angle | 10°/20°/30°/40°/60°/90°/Type II/Type III/P50 | |||||||||
| Material | ADC12, optical PC lens, tempered glass | |||||||||
| Life Span | ≥102,000 hours (L70) | |||||||||
| L90B10 | 100,000 hours | |||||||||
| IP Grade | IP66 | |||||||||
| Operating Tem. | -40~50°C | |||||||||
| THD | <12% | |||||||||
DALI dimming 600W LED flood light stadium light with 7 PIN NEMA socket and Zhaga book18 socket feature
Zhaga-D4i luminaires, tested for compliance against Zhaga specifications.
Smart lighting system, DALI-2 / AC dim / Timer dimming.
With 5/7 PIN NEMA socket: 0~10Vdc / PWM / Timer dimming.
TUV ENEC, CB, SAA, CE, RETILAP, RoHS certified.
Smart and modern design, free-tool maintenance, the buckle design on the cover of the lamp enables you to open the luminaires without tools.
Power-off automatically, built-in power-off protection device, luminaires will automatically and immediately cut off the power when the luminaries opened, to ensure safety maintenance.
System lumens output up to 175lm/W, powered by Lumileds 5050 or Lumileds 2835, high efficacy and superior robustness in a multi-die, high power package, enabling cost-effective system design.
Provide 5/7/10 year warranty, provide standard 5 year warranty, optional 7/10 year warranty for the luminaires.
A variety of drivers are available, such as SOSEN, MOSO, INVENTRONICS,UPOWERTEK, MEAN WELL, TRIDONIC, PHILIPS.

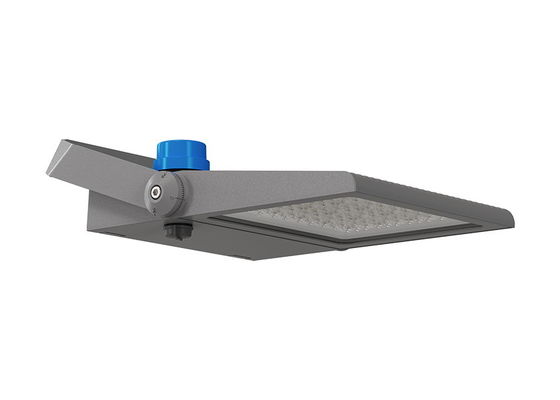

3 pin, 5 pin, 7 pin NEMA socket with photocell sensor or shorting cap, photocell sensor working method: 10LX (sun set/dark) turn on and 50LX (sun rise) turn off automatically, the level could be adjusted according to customers’ requirement, the lamps operate depends on the ambient luminance, the lamps will lighten with a suitable illumination automatically when it is dark.
5 pin and 7 pin NEMA socket to extend for the 0-10V dimming or DALI control
DALI control. Luminaries can be controlled by a computer.
0/1-10V dimming. Luminance can be divided into 10 level, set it upon your specific requirements.
No light pollution for residential areas.
Support built-in 10KV / 20KV /40KV SPD (surge protection device), extends the lifetime of the product while protecting the driver and the luminaires from thunder too.
High product reliability by applying 13 steps painting process, high efficiency coating. Paint and metal parts successfully passed the 480 hours salt spray test.
Optional C5-M grade,marine grade, provide with TUV C5-M test report.
|
|
